Please find the below guide for configuring a DLink 9970 Router for a Ghost ADSL connection. You can also download a copy of this guide here.
- Press and hold the FACTORY reset button on the back of the router for 15 seconds.
- Connect to the router via WiFi or ethernet
- Open a web browser to http://192.168.1.1
- Enter admin as the USERNAME and admin as the PASSWORD
- click QUICK START wizard on the LEFT hand side and click NEXT

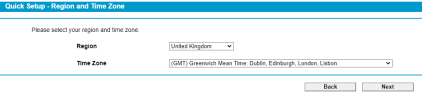

- Region and Time Zone. Select United Kingdom in the drop down and click NEXT.

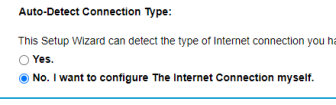

- Select NO. I want to configure the internet connection myself. And click NEXT

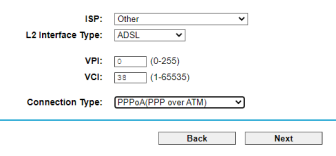

- Enter the following and click NEXT.
- ISP: Other
- L2 INTERFACE TYPE: ADSL
- VPI: 0
- VCI: 38
- INTERNET CONNECTION TYPE: PPPoA

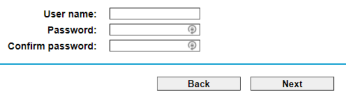

- Enter the following and click NEXT.
- USERNAME: replace-username@ghostgb.co.uk
- PASSWORD: replace-password
- CONFIRM PASSWORD: replace-password
- Ignore the 3G / 4G backup and click NEXT

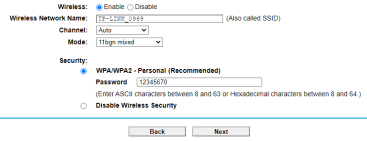

- WiFi leave default and click NEXT.
- Click SAVE. This screen will show your information not what is show below.
- Click FINISH
